| HAD Series Condition |
|
|
|
|
|
|
|
| 1. Ambient temperature: 38℃, Max. 42℃ |
|
|
|
|
| 2. Inlet temperature: 38℃, Max. 65℃ |
|
|
|
|
| 3. Working pressure: 0.7MPa, Max.1.6Mpa |
|
|
|
|
| 4. Pressure dew point: 2℃~10℃（Air dew point：-23℃~-17℃） |
|
|
|
|
| 5. No sun, no rain, good ventilation, device level hard ground, no dust and fluff |
|
|
|
|

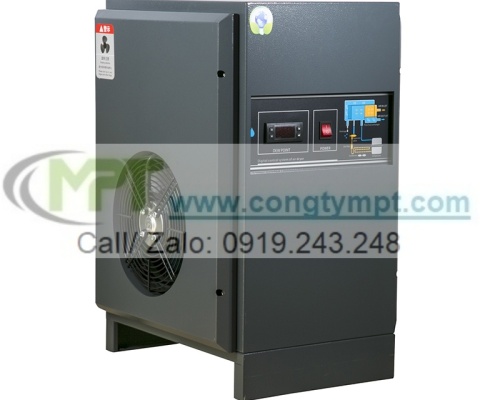

| HAD Series Refrigerated Air Dryer |
|
|
|
|
|
| |
Model |
HAD-1HTF |
HAD-2HTF |
HAD-3HTF |
HAD-6HTF |
HAD-8HTF |
HAD-10HTF |
HAD-12HTF |
| Air dryer |
| Max. air volume |
m3/min |
1.4 |
2.4 |
3.8 |
6.5 |
8.5 |
11 |
13.5 |
| Power supply |
|
220V/50Hz |
| Input power |
KW |
0.37 |
0.52 |
0.73 |
1.26 |
1.87 |
2.43 |
2.63 |
| Air pipe connection |
|
RC3/4" |
RC1" |
RC1-1/2" |
RC2" |
| Evaporator type |
|
Aluminum alloy plate |
| Refrigerant model |
|
R134a |
R410a |
| System Max. |
0.025 |
| pressure drop |
| Intelligent control and protection |
|
| Display interface |
|
LED dew point display, LED alarm code display,operation status indication |
| Intelligent anti-freezing protection |
|
Constant pressure expansion valve and compressor automatic start/stop |
| Temperature control |
|
Automatic control of condensing temperature/dew point temperature |
| High voltage protection |
|
Temperature sensor |
| Low voltage protection |
|
Temperature sensor and inductive intelligent protection |
| Energy saving |
KG |
34 |
42 |
50 |
63 |
73 |
85 |
94 |
| Dimension |
L |
480 |
520 |
640 |
700 |
770 |
770 |
800 |
| W |
380 |
410 |
520 |
540 |
590 |
590 |
610 |
| H |
665 |
725 |
850 |
950 |
990 |
990 |
1030 |
