Product Description

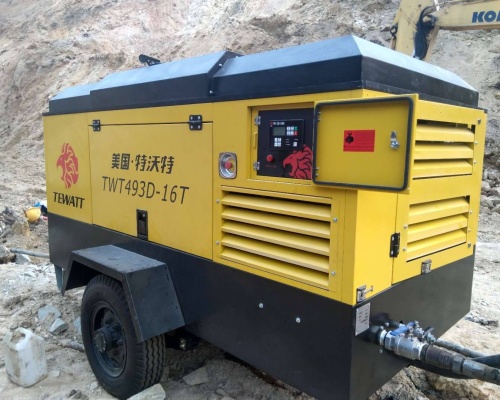

TEWATT 493CFM/16BAR Transfer low-medium pressure screw air compressors is main composition by TEWATT single stage air-ends and DECE CUMMINS engine. High efficiency air-end matched with Cummins engine can be reach 493cfm/16bar. Working pressure range is 11~16bar, also can be adjusted automatically to save more energy. These series are specialized and suitable for Mine Blasting, Hydroelectric Construction, Infrastructure Constructions, etc. As we know, those working condition with heavy dust, but no problems to TEWATT air compressor. We can also provide the construction plan, if you need to more.
Features&Benefits:
1. Tewatt Screw Air-end with high efficiency and energy saved function (5 years/10000 hours warranty)
2. Fuel Efficient CUMMINS engine with green friendly environment protection
3. Tewatt Intelligent Controller, Smart cloud management system can be check on mobile phone and computer.
4. High efficient and excellent performance Air Filter &Intake System .
Certificate
CE, SGS ISO9001/ISO 14001, Noise Certificate
Technical Specifications:
| Model |
TWT493D-16T (Skid-mounted optional) |
| Compressor Stage |
Single Stage |
| Free Air Delivery (CFM/ M3/min) |
493/14 |
| Working Pressure (psig/bar) |
232/16 |
| Screw Oil Volume-(L) |
50 |
| Diesel Engine |
CUMMINS |
| Engine Model |
QSB5.9-C210-30 |
| Rated Power (HP/KW) |
210/154 |
| Rated Speed/Idle (rpm) |
2200/1350 |
| Cylinders |
6 |
| Bore (mm) |
102 |
| Stroke (mm) |
120 |
| Displacement (L) |
5.9 |
| Emission Class |
EU III / TIER 3 |
| Battery Voltage (V) |
24 |
| Fuel Tank Capacity (L) |
180 |
| Connector Size*Qty |
G3/4" *1, G 2"* 1 |
| Wheel Size*Qty |
7.00-16*2 |
| Weight (Kgs) |
2500 |
| Dimension (mm) |
4250*2100*2150 |
| Noise {dB(A)} |
76±3 |
| Working Temp.(℃) |
-15℃~50℃(special conditions can be customized) |
Note: Specifiations are subject to change without further notice.
